Internal Reference:
S6-GR3P10K02-NV-ND

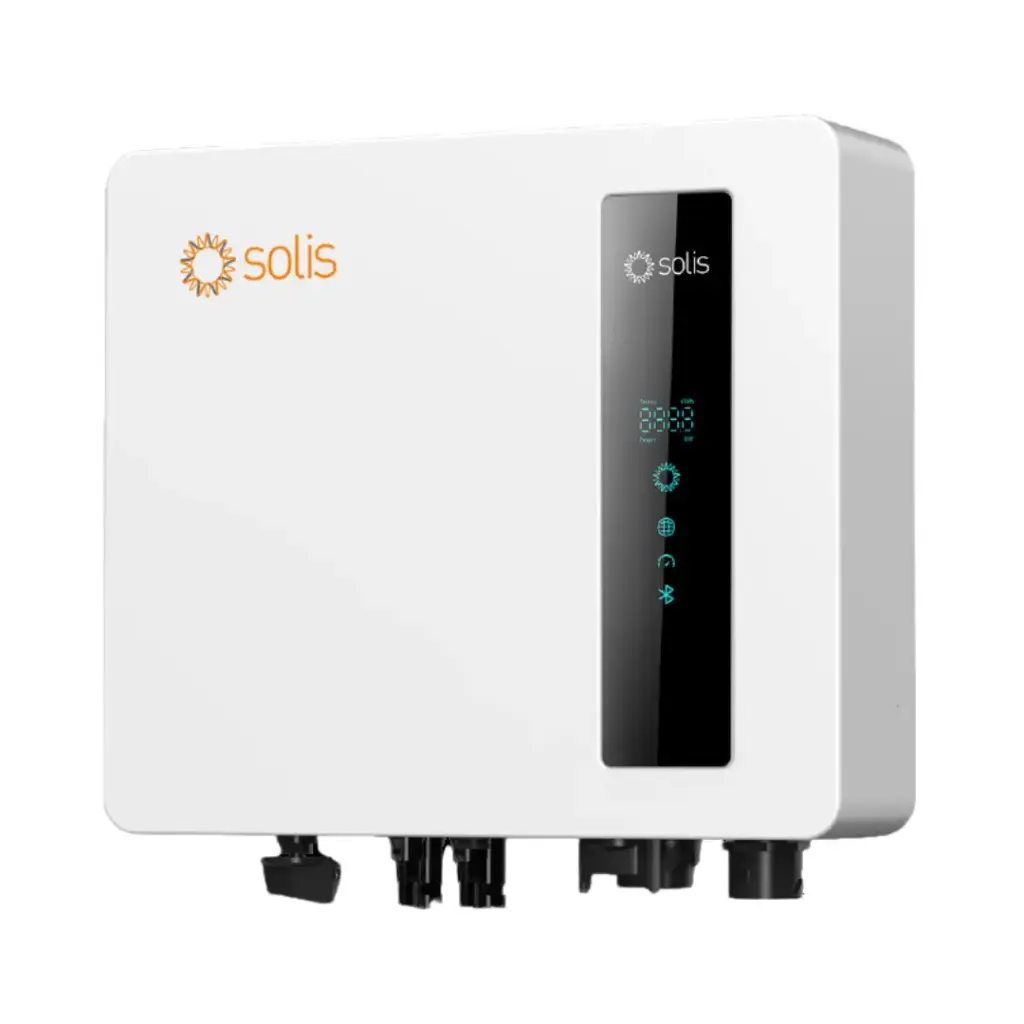

The Solis S6-GR3P10K02 is a 10kW three-phase string inverter, a reliable choice for residential and small commercial PV plants. It offers 98.7% max. efficiency, over 150% DC/AC ratio, export power control, AFCI protection, 24-hour load consumption monitoring, adaptive weak-grid operation and IP66 protection.
Technical Specifications
| Models | 3K | 4K | 5K | 6K | 8K | 9K | 10K |
| Input DC | |||||||
| Recommended max. PV power | 4.5 kW | 6 kW | 7.5 kW | 9 kW | 12 kW | 13.5 kW | 15 kW |
| Max. input voltage | 1100 V | ||||||
| Rated voltage | 600 V | ||||||
| Start-up voltage | 160 V | ||||||
| MPPT voltage range | 160 - 1000 V | ||||||
| Max. input current | 21 A / 21 A | ||||||
| Max. short circuit current | 26.5 A / 26.5 A | ||||||
| MPPT number / Max. input strings number | 2 / 2 | ||||||
| Output AC | |||||||
| Rated output power | 3 kW | 4 kW | 5 kW | 6 kW | 8 kW | 9 kW | 10 kW |
| Max. apparent output power | 3 kVA | 4 kVA | 5 kVA | 6 kVA | 8 kVA | 9 kVA | 10 kVA |
| Max. output power | 3 kW | 4 kW | 5 kW | 6 kW | 8 kW | 9 kW | 10 kW |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||||||
| Rated grid frequency | 50 Hz / 60 Hz | ||||||
| Rated grid output current | 4.6 A / 4.3 A | 6.1 A / 5.8 A | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 13.7 A / 13.0 A | 15.2 A / 14.4 A |
| Max. output current | 4.6 A / 4.3 A | 6.1 A / 5.8 A | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 13.7 A / 13.0 A | 15.2 A / 14.4 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | ||||||
| THDi | < 3% | ||||||
| Efficiency | |||||||
| Max. efficiency | 98.3% | 98.5% | |||||
| EU efficiency | 97.7% | 97.9% | |||||
| Protection | |||||||
| DC reverse-polarity protection | Yes | ||||||
| Short circuit protection | Yes | ||||||
| Output over current protection | Yes | ||||||
| Surge protection | Yes | ||||||
| Grid monitoring | Yes | ||||||
| Anti-islanding protection | Yes | ||||||
| Temperature protection | Yes | ||||||
| I/V Curve scanning | Yes | ||||||
| Multi peak scan | Yes | ||||||
| Integrated AFCI 2.0 | Optional | ||||||
| Integrated PID recovery | Optional | ||||||
| Integrated DC switch | Yes | ||||||
| General Data | |||||||
| Dimensions (W × H × D) | 355 × 410 × 179 mm | ||||||
| Weight | 14.7 kg | 15.4 kg | |||||
| Topology | Transformerless | ||||||
| Self-consumption (night) | < 1 W | ||||||
| Operating ambient temperature range | -25 ~ +60°C | ||||||
| Relative humidity | 0 - 100% | ||||||
| Ingress protection | IP66 | ||||||
| Noise emission (typical) | < 30 dB(A) | ||||||
| Cooling concept | Natural cooling | ||||||
| Max. operation altitude | 4000 m | ||||||
| Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 | ||||||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 | ||||||
| Features | |||||||
| DC connection | MC4 connector | ||||||
| AC connection | Quick connection plug | ||||||
| Display | LED digital display & Bluetooth + APP | ||||||
| Communication | RS485, Optional: Wi-Fi, GPRS | ||||||
