The Solis S6-EH3P80K10 is a 80kW three-phase high-voltage hybrid inverter, part of the world's largest wall-mounted hybrid series, with 10 MPPTs, two independent 100A battery ports (300–950V), up to 6 units in parallel and peak shaving for C&I and large storage projects.

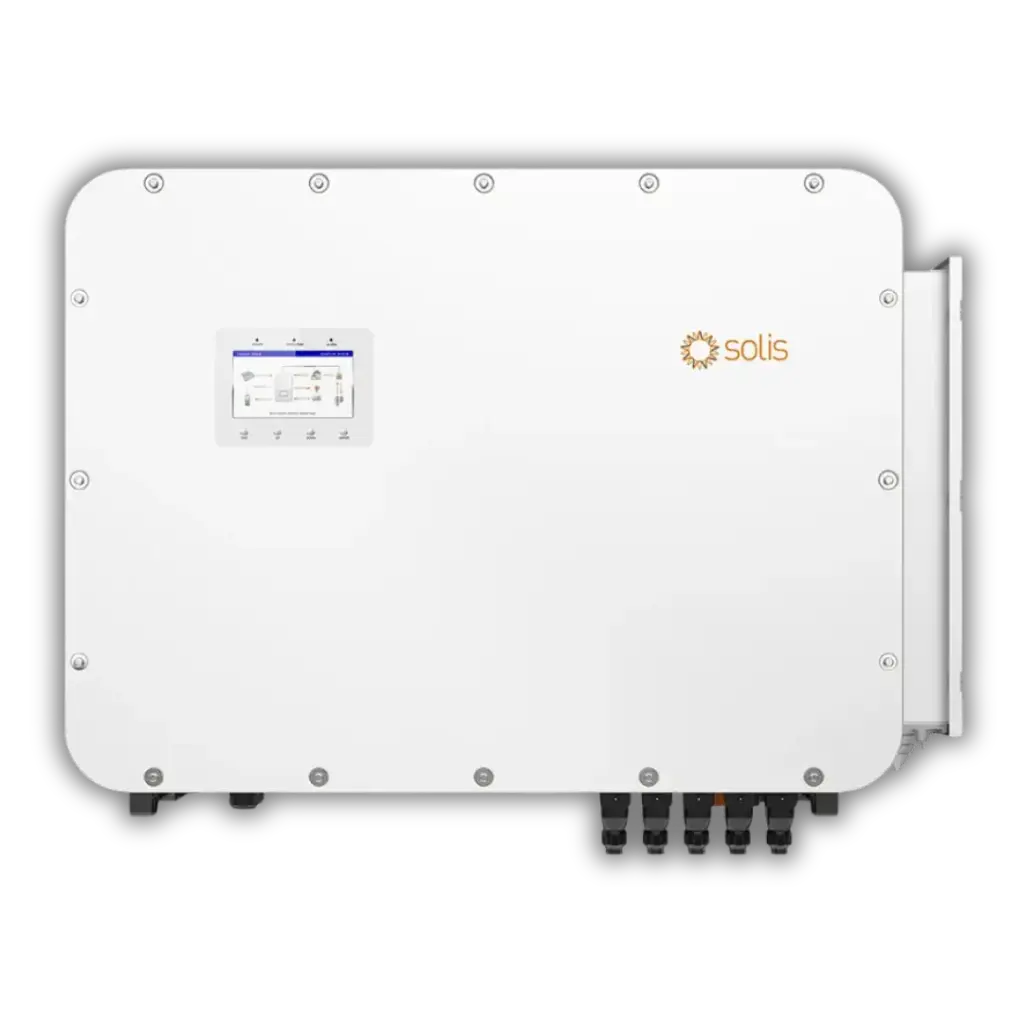

Solis 80kW Three Phase HV Hybrid Inverter
Leading Features:
• 80kW rated output, up to 160kW usable PV input
• 10 MPPTs / 20 strings, 1000V max. input voltage
• High-voltage battery input (300~950V), 100A per port
• <10ms back-up switch time, 100% unbalanced output
• 97.6% max. efficiency, 97.0% battery-to-AC efficiency
• IP66 protection, intelligent fan cooling, AFCI 2.0
Technical Specifications
| Models | 75K | 80K | 100K | 125K |
| Input DC (PV side) | ||||
| Recommended max. PV array size | 150 kW | 160 kW | 200 kW | 240 kW |
| Max. usable PV input power | 150 kW | 160 kW | 200 kW | 240 kW |
| Max. input voltage | 1000 V | |||
| Rated voltage | 600 V | |||
| Start-up voltage | 180 V | |||
| MPPT voltage range | 150 - 950 V | |||
| Max. input current | 10 × 42 A | |||
| Max. short circuit current | 10 × 60 A | |||
| MPPT number / Max. input strings number | 10 / 20 | |||
| Battery | ||||
| Battery type | Li-ion | |||
| Battery voltage range | 300 - 950 V | |||
| Max.charge / discharge current | 200 A / 100 A + 100 A | |||
| Number of battery ports | 2 | |||
| Max. charge / discharge current of each port | 100 A | |||
| Communication | CAN / RS485 | |||
| Output AC (Grid side) | ||||
| Rated output power | 75 kW | 80 kW | 100 kW | 125 kW |
| Max. apparent output power | 75 kVA | 80 kVA | 100 kVA | 125 kVA |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | |||
| Rated grid frequency | 50 Hz / 60 Hz | |||
| Rated grid output current | 114 A / 108.3 A | 121.6 A / 115.5 A | 152 A / 144.3 A | 180.4 A / 189.9 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||
| THDi | < 3% | |||
| Input AC (Grid side) | ||||
| Max. input current | 250 A | |||
| Output AC (Back-up) | ||||
| Rated output power | 75 kW | 80 kW | 100 kW | 125 kW |
| Back-up switch time | < 10 ms | |||
| Rated output voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | |||
| Rated frequency | 50 Hz / 60 Hz | |||
| THDv (@linear load) | < 2% | |||
| Efficiency | ||||
| Max. efficiency | 97.6% | |||
| EU efficiency | 97.2% | |||
| BAT charged / discharged to AC max. efficiency | 97.0% | |||
| Protection | ||||
| Anti-islanding protection | Yes | |||
| Output over current protection | Yes | |||
| Short circuit protection | Yes | |||
| Integrated DC switch | Yes | |||
| DC reverse-polarity protection | Yes | |||
| Surge protection | DC Type II / AC Type II | |||
| Integrated AFCI 2.0 | Yes | Optional | Optional (Brazil: Yes) | |
| Protection class / Over voltage category | I / II | |||
| General Data | ||||
| Max. allowable phase imbalance (grid & back-up) | 100% | |||
| Max. power per phase (grid & back-up) | 25.00 kW | 26.66 kW | 33.33 kW | 41.66 kW |
| Dimensions (W × H × D) | 1174 × 814 × 400 mm | |||
| Weight | 170 kg | |||
| Topology | Transformerless | |||
| Operating ambient temperature range | -25 ~ +60°C | |||
| Ingress protection | IP66 | |||
| Cooling concept | Intelligent fan-cooling | |||
| Max. operation altitude | 3000 m | |||
| Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/ UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022; Brazil (75K: ORDINANCE (PORTARIA) NO.140, ORDINANCE NO. 515; 100K/125K: NBR 16149, NBR 16150, IEC 62116) | |||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 | |||
| Features | ||||
| PV connection | MC4 Quick connection plug | |||
| Battery connection | Terminal connector | |||
| AC connection | Terminal block | |||
| Display | 7.0" LCD display & Bluetooth + APP | |||
| Communication | CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN | |||
