Internal Reference:

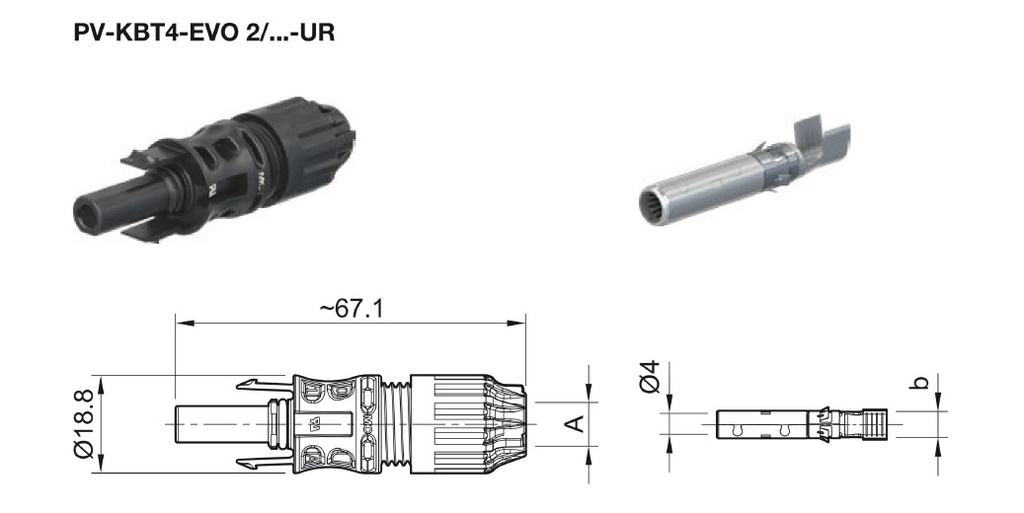

PV-KBT4-EVO 2/6II-UR
Technical Specifications
| Type | PV-KBT4-EVO 2/6II-UR | PV-KST4-EVO 2/6II-UR |
| Order No. | 32.0088P0001-UR | 32.0089P0001-UR |
| Description | Female cable coupler | Male cable coupler |
| Conductor cross section | 4; 6 mm² (12; 10 AWG) | |
| Ø range of cable gland | 6.4-8.4 mm | |
| Technical Data | ||
| Connector system | MC4-Evo 2 | |
| Ambient temperature range | -40 °C...+85 °C (TÜV/UL) | |
| Upper limiting temperature | 115 °C | |
| Degree of protection | IP68 (1 m, 1 h) / IP65; unmated IP2X | |
| Category / Degree of pollution | CAT III / 3 | |
| Max. contact resistance | 0.2 mΩ | |
| Rated impulse voltage | 16 kV | |
| Rated voltage | DC 1500 V (IEC, JET, UL) | |
| Contact system | MULTILAM | |
| Type of connection | Crimping | |
| Contact material | Copper, tin plated | |
| Insulation material | PA | |
| Locking system | Locking Type | |
| Fire protection class | UL94:V-0 | |
| Ammonia resistance / Salt mist (severity 6) | yes / yes | |
| Certificates | TÜV Rheinland R 60127169; UL E343181; JET B18T0049 | |
